boss pedal delay Boss SDE-3000EVH Eddie Van Halen Signature Dual Digital Delay Pedal New

boss pedal delay Boss SDE-3000EVH Eddie Van Halen Signature Dual Digital Delay Pedal NewBoss SDE 3000EVH Eddie Van Halen Signature Dual Digital Delay Pedal BOSS and EVH Unite to Bring You the Legendary Eddie Van Halen Dual Delay Sound EVH and BOSS join forces to bring you the SDE 3000 EVH Dual Digital Delay, an authentic recreation of the stereo delays at the heart of Eddie Van Halens massive three cabinet live stage guitar sound. Based on the vintage Roland SDE 3000 rackmount delay, this powerhouse processor puts two fully featured SDE

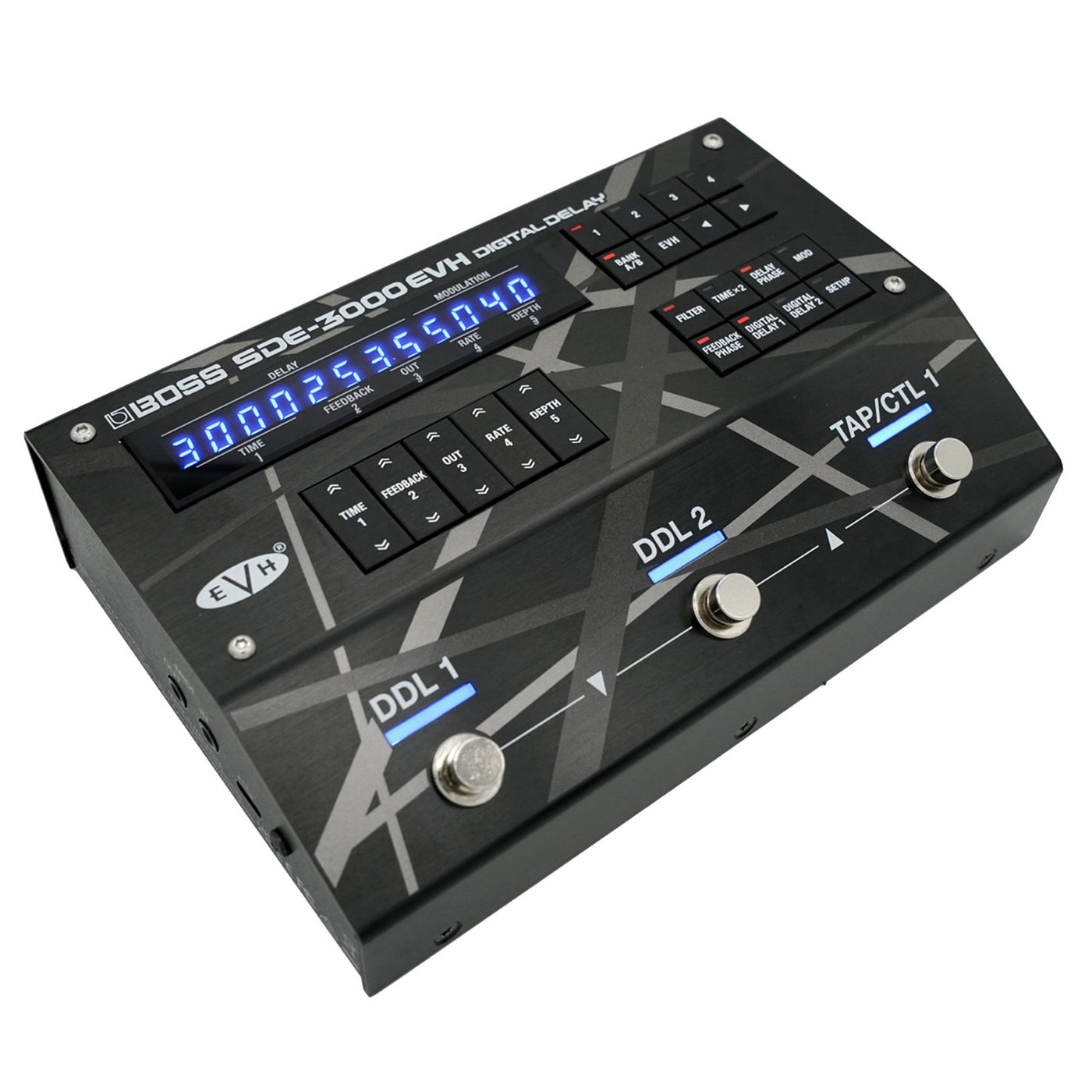

Boss SDE-3000EVH Eddie Van Halen Signature Dual Digital Delay Pedal

BOSS and EVH Unite to Bring You the Legendary Eddie Van Halen Dual Delay Sound

EVH and BOSS join forces to bring you the SDE-3000 EVH Dual Digital Delay, an authentic recreation of the stereo delays at the heart of Eddie Van Halen’s massive three-cabinet live stage guitar sound. Based on the vintage Roland SDE-3000 rackmount delay, this powerhouse processor puts two fully featured SDE-3000s in one floor-based pedal, coupled with extensive connectivity to build a wet/dry/wet rig just like Eddie’s. You also get eight presets created by EVH with the exact settings from his actual delay units, allowing you to experience the master’s expansive spatial delay tone in your own setup.


SDE-3000EVH Dual Delay

The SDE-3000EVH delivers an authentic recreation of the stereo delays at the heart of Eddie Van Halen’s live three-cabinet wet/dry/wet stage guitar sound. The legendary guitarist pioneered this approach in the early 1990s, using a dry path from a single amplifier in the center cabinet and left and right cabinets amplified with wet-only delay effects for a wide, multi-dimensional soundstage. The Roland SDE-3000 delays were perfect for his needs and remained core components of his stage rig throughout his long career. With the multiple outputs and versatile routing modes in the SDE-3000EVH, it’s possible to recreate this setup with your own amps.


One-Touch EVH Presets

The SDE-3000EVH features eight EVH presets accessed via a dedicated panel switch. The first four presets are designed for a wet/dry/wet setup, and they represent the actual presets Eddie used in his live rig. The next four presets provide the same sounds, adapted for a standard stereo amplifier setup. The EVH presets are exactly like the presets in Eddie’s rack. There’s no difference in mix levels, input levels, or delay times — it's one-to-one.


Authentic Details, Modern Enhancements

The SDE-3000EVH includes nearly every parameter from the vintage 80s SDE-3000, accessed via a retro interface derived from the vintage hardware.


Two SDE-3000s in One Pedal

The SDE-3000EVH provides two discrete delays with independent parameters and mono or stereo modulation on each. And along with the EVH wet/dry/wet configuration, the flexible I/O supports a variety of mono and stereo setups.


Modern Compact Power

With its pedal-based design and expanded control options, the SDE-3000EVH offers much greater versatility than its rackmount inspiration. Three onboard footswitches provide instant control of memory selection, tap tempo, delay hold, momentary effect engagement, and more. Two control jacks allow you to connect up to four footswitches, two expression pedals, or a GA-FC/GA-FCEX for external operation, and TRS MIDI I/O is also included. There’s a large selection of assignable targets to choose from, delivering deep real-time control that reaches far beyond the capabilities of the original SDE-3000.


Features:

• Includes two full-featured delays, each with independent parameters, mono/stereo modulation, and panning
• Widely adjustable delay time with two range settings: 0–1500ms and 0–3000ms
• Characteristic modulation inspired by the original 80s SDE-3000 circuit design
• Phase switches for the primary delay and delay feedback loop
• Adjustable low-cut and high-cut filters for shaping delay feedback sounds
• Send/return functionality for patching in an effect pedal or using the four-cable method
• Selectable impedance on the effect return for optimizing tone with different amplifiers
• Selectable series or parallel operation for the two delays
• Save and recall sounds with 100 user memories
• Adjustable noise suppressor
• Assignable onboard footswitch control for tap tempo, hold, and more
• Jacks for extended operation with up to four footswitches, two expression pedals, or the GA-FC/GA-FCEX foot controller
• MIDI I/O on space-saving mini TRS jacks
• Includes three ground-lift cables for eliminating hum with multi-amplifier setups


Specifications

• Sampling Frequency: 48 kHz
• Processing: 32-bit floating point
• Memories: 100
• Display: 7 segments, 12 digits LED
• Power Supply: AC adaptor (included)
• Current Draw: 450 mA
• Dimensions: 7-7/8" (W) x 5-3/8" (D) x 2-1/8" (H) (including rubber feet)
• Weight: 2 lbs 7 oz


Connectors

• INPUT MONO
• INPUT L/MONO
• OUTPUT (DIRECT, EFX L, EFX R)
• OUTPUT (L/MONO, R)
• SEND
• RETURN/INPUT R : 1/4" phone type
• CTL2,3/EXP1 jack, CTL4,5/EXP2/GA-FC jack: 1/4-inch TRS phone type
• MIDI (IN, OUT): Stereo miniature phone type
• USB port: USB Type-C
• DC IN


Included Accessories

• AC adaptor (PSB-1U + AC Cord Set)
• GND LIFT CABLE x 3
• STARTUP GUIDE
• Leaflet "USING THE UNIT SAFELY"
• Leaflet "USAGE OF GND LIFT CABLE"
• Rubber feet x 4
